ZONESUN ZS-FAL180X9 Full Automatic Paste Filling Screw Capping Round Bottle Labeling Machine with Unscrabler Production Line
ZONESUN ZS-FAL180X9 Full Automatic Paste Filling Screw Capping Round Bottle Labeling Machine with Unscrabler Production Line
픽업 사용 가능 여부를 로드할 수 없습니다.
DESCRIPTION

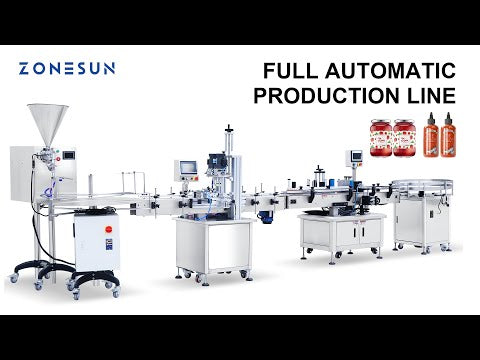

This automatic production line is specially designed for viscous gels, and creams. It includes a bottle unscrambler, a filling machine, a capping machine, and a labeling machine, which greatly improves production efficiency and saves labor. It applies to food, daily chemical, and cosmetic industries, etc.
PARAMETER
|
FILLING MACHINE |
|
|
Model |
ZS-VTRP1 |
|
Machine voltage |
110/220V 50-60HZ 1KW |
|
Filling pump |
Lobe rotor pump |
|
Filling range |
About 5-5000ml |
|
Suitable bottle size |
Diameter=50-100mm Height=50-250mm |
|
Hopper size |
25L |
|
Working speed |
20-35 bottles/min (based on filling material and filling volume) |
|
Working height |
About 850±25mm |
|
Machine size |
About 1688*1204*1800mm |
|
Machine weight |
About 200kg |
|
CAPPING MACHINE |
|
|
Model |
ZS-XG16 |
|
Machine voltage |
AC220V 50Hz/60Hz 1000W |
|
Working pressure |
0.4-0.6 MPa |
|
Working speed |
20-60 bottles/minute (depending on bottle and cap size and shape) |
|
Bottle height |
30-300mm |
|
Cap Diameter |
18-70mm |
|
Bottle Diameter |
20-160mm |
|
Size of air compressor connector |
OD 8mm |
|
Machine size |
About 1930*740*1600mm |
|
Machine weight |
About 113kg |
|
Packing SizePacking Size |
About 2000*820*1760mm |
|
Package weight |
About192.5kg |
|
LABELING MACHINE |
|
|
Model |
ZS-TB260R |
|
Machine voltage |
AC220V 50Hz/60Hz 1000W |
|
Labeling capacity |
25-50 bottles/min(depends on bottle size) |
|
Suitable Bottle Diameter |
Φ12-100mm |
|
Label size |
(L)20-300mm (H)15-150mm |
|
Roll corediameter(mm) |
Φ76mm(3 inch） |
|
Roll outer diameter(mm) |
Φ350mm |
|
Conveyor Size |
112*2000mm(W) |
|
Machine size |
About (L)2000*(W)820*(H)1380(mm) |
|
Machine weight |
About 180kg |
|
Packing Size |
About (L)2100*(W)890*(H)1520(mm) |
|
Package weight |
About 250kg |
|
BOTTLE UNSCRAMBLER |
|
|
Model |
ZS-SP800S |
|
Voltage |
220V 50Hz200W(110V can be customized) |
|
Bottle specifications |
Square bottle/round bottle |
|
Conveying speed |
0-20 revolutions per minute(adjustable) |
|
Turntable diameter |
(L)20-300mm (H)15-150mm |
|
Roll corediameter(mm) |
800 mm |
|
Dimension |
About 550*550*990mm |
|
Package size |
About 1050*1000*1130mm |
|
N.W./G.W. |
About 93kg/120kg |
