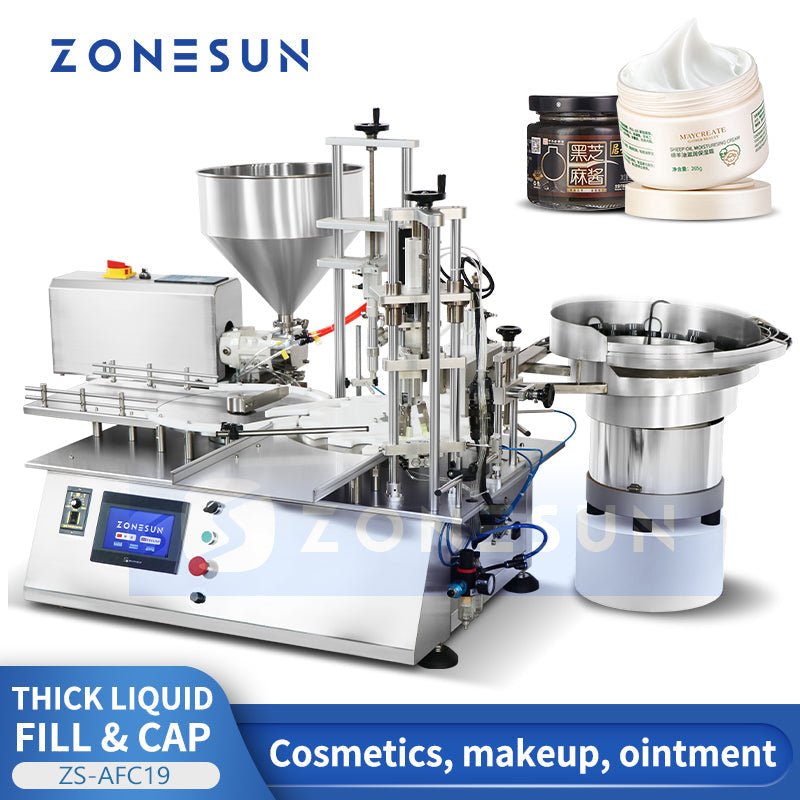

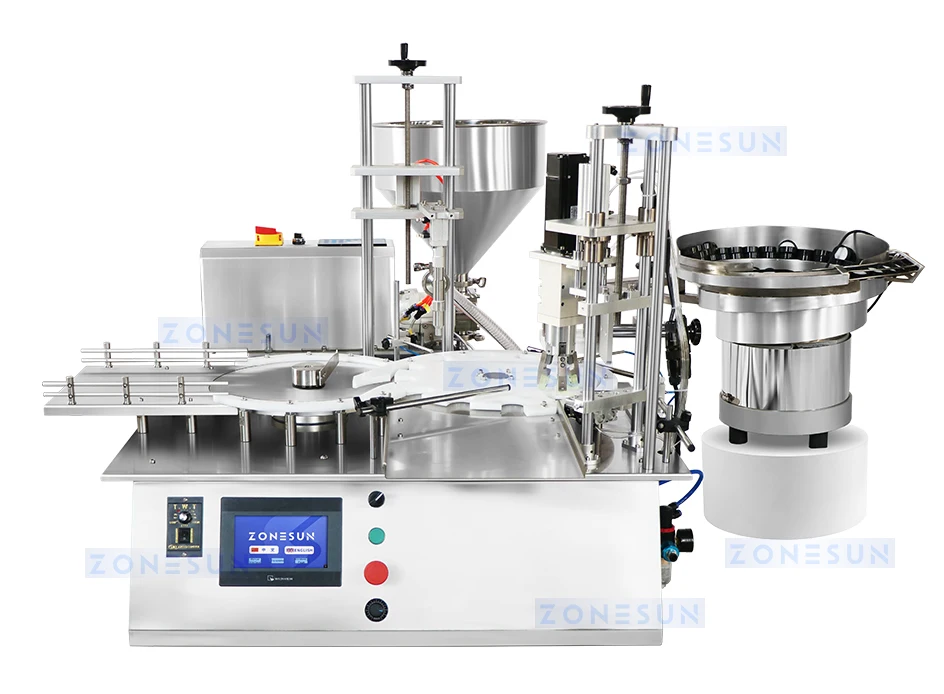

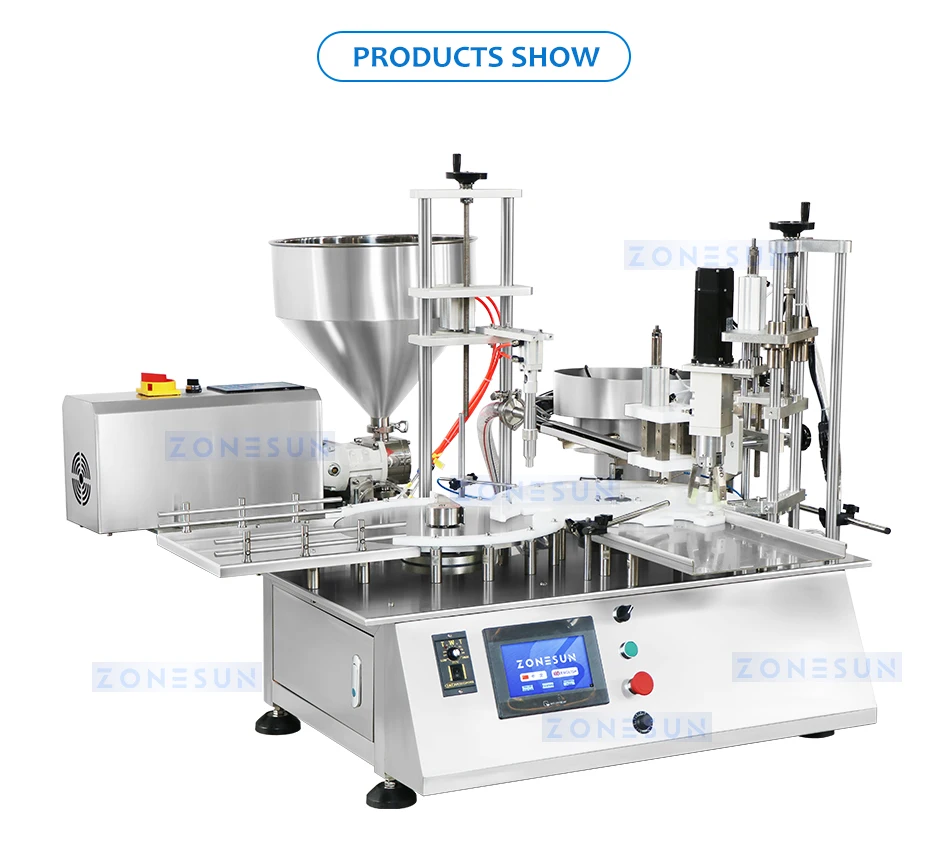

ZONESUN ZS-AFC19 Automatic Rotor Pump Thick Liquid Paste Filling Capping Machine with Vibratory Feeder
ZONESUN ZS-AFC19 Automatic Rotor Pump Thick Liquid Paste Filling Capping Machine with Vibratory Feeder
Couldn't load pickup availability
DESCRIPTION

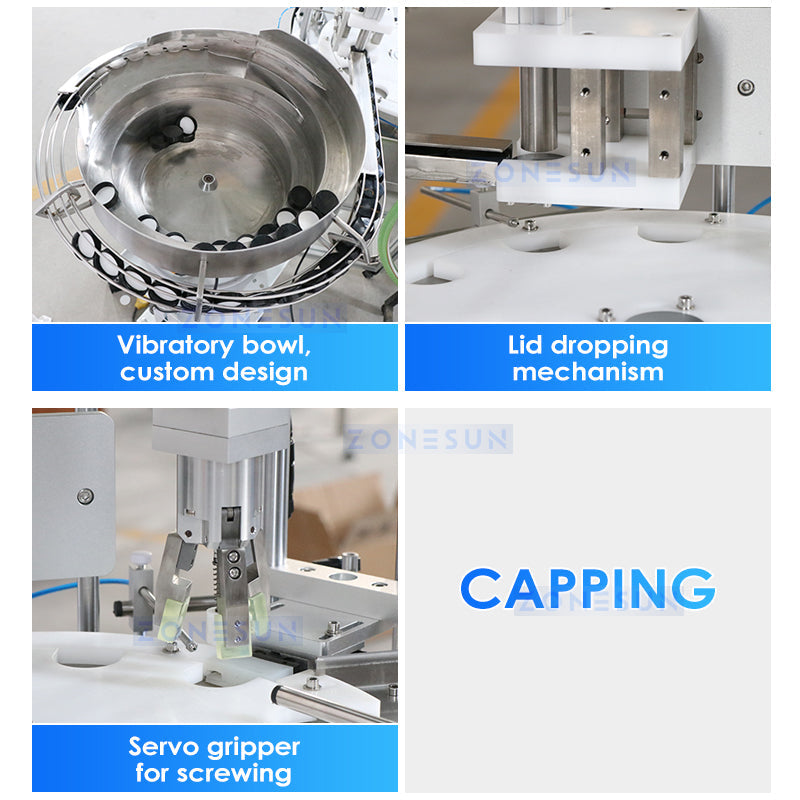

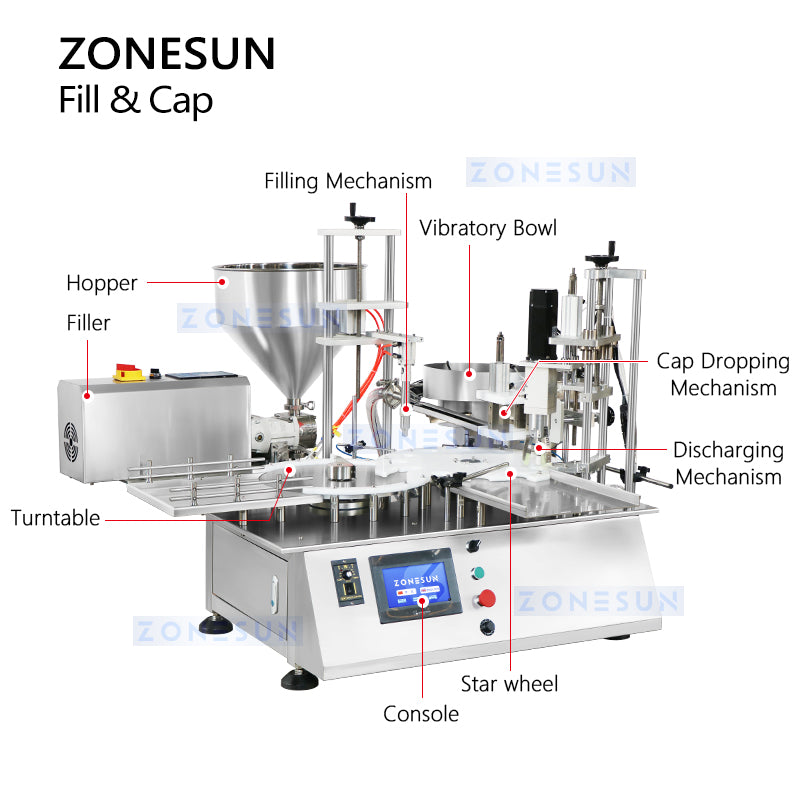

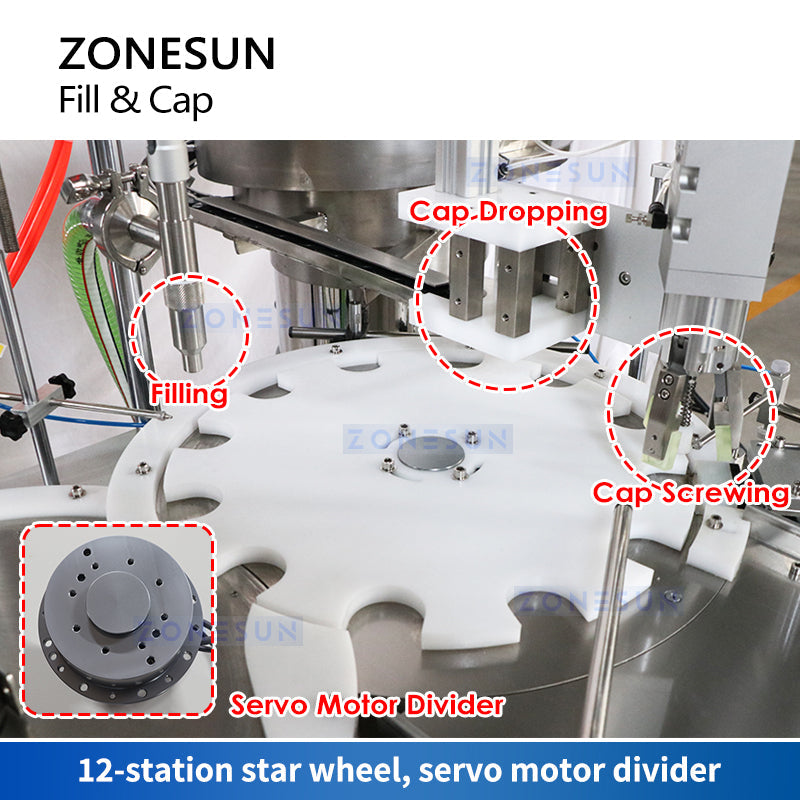

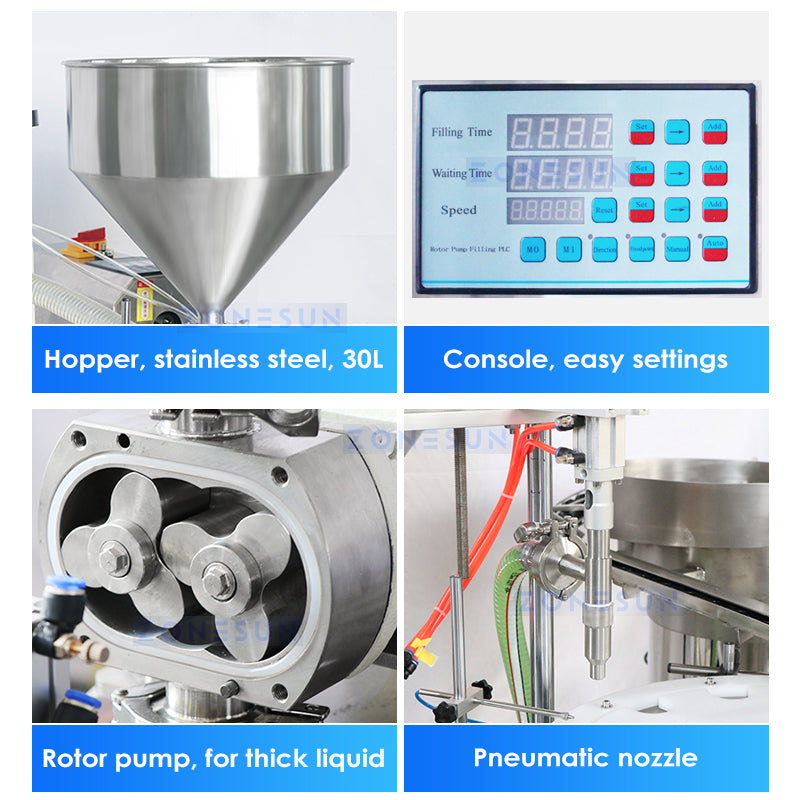

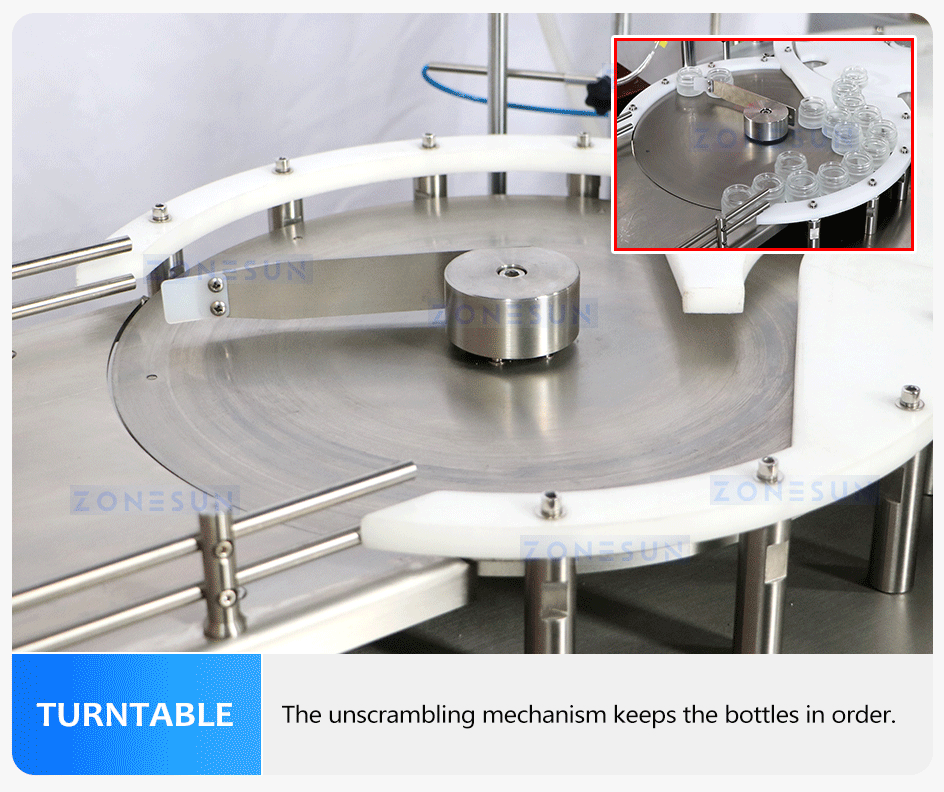

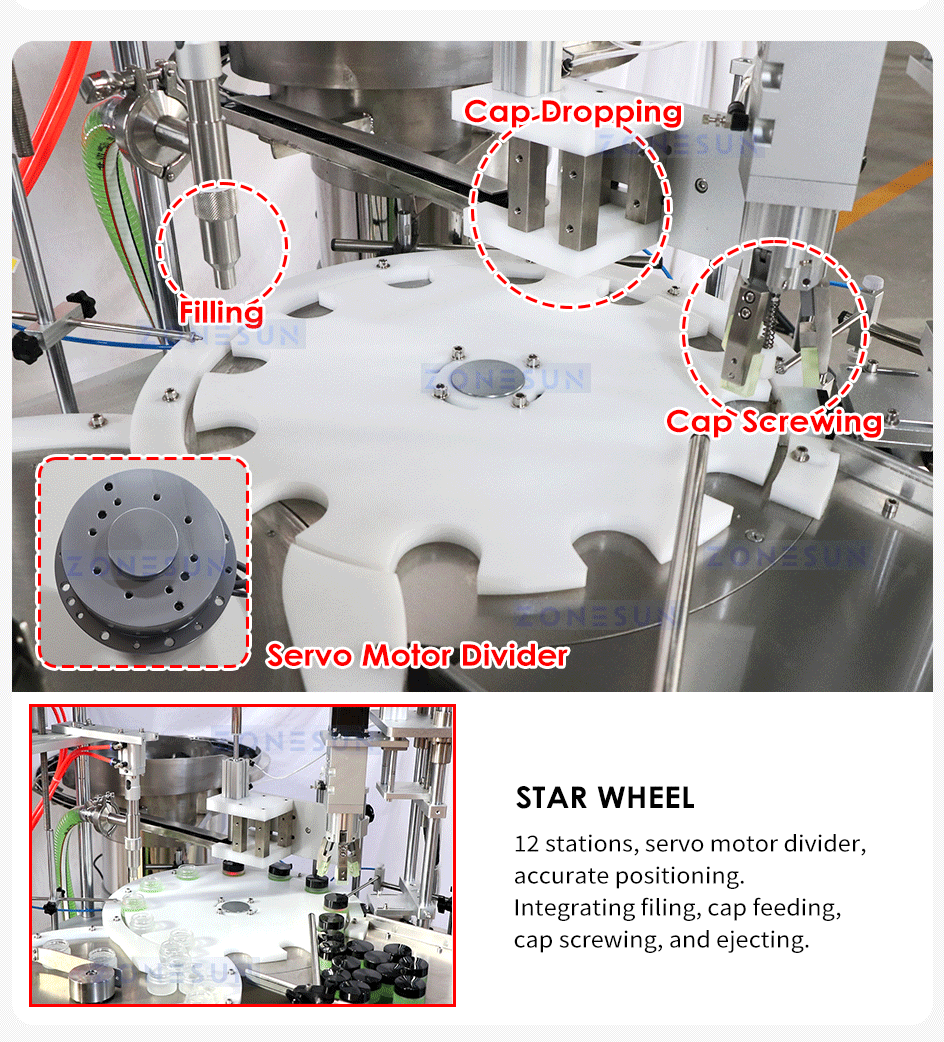

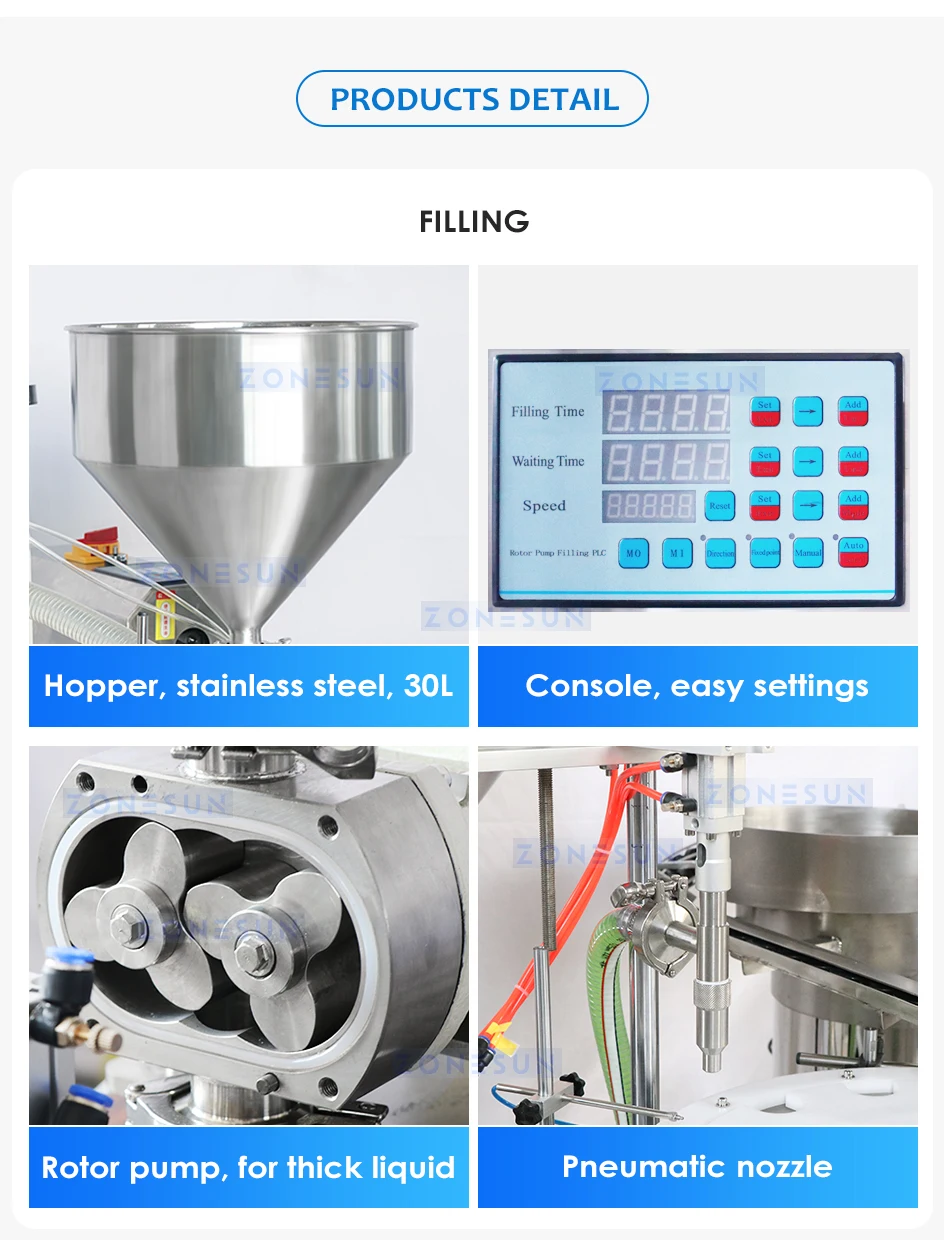

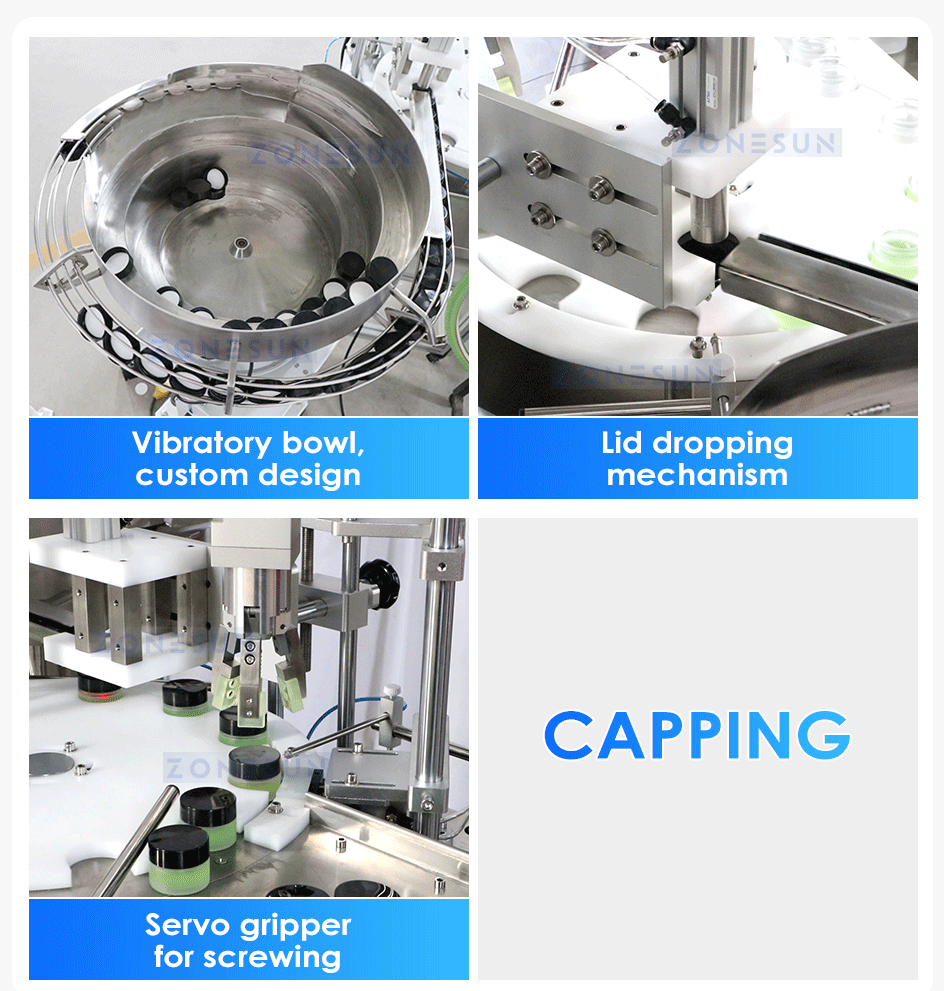

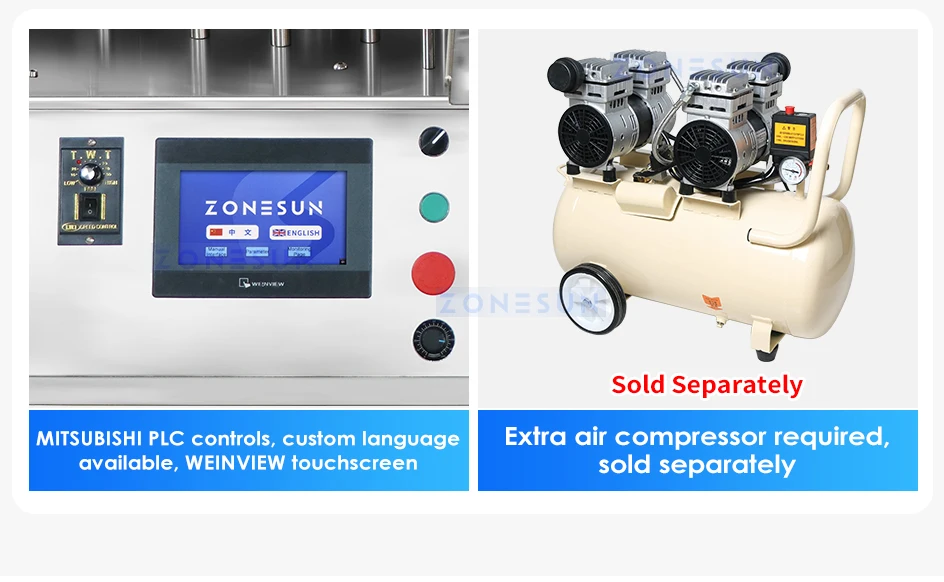

The monoblock includes a turntable for unscrambling the bottles, which are then transferred to a star wheel with a servo motor divider for working stations. The bottles are then filled with thick liquid using a high-precision rotor pump, which ensures accurate and consistent filling of each bottle. In addition, the monoblock includes a vibratory bowl to feed the caps, which are then securely screwed onto the bottles using a servo gripper. The advanced PLC controls and touch screen interface make it easy to monitor and adjust the machine's operation, ensuring optimal performance and minimizing downtime.

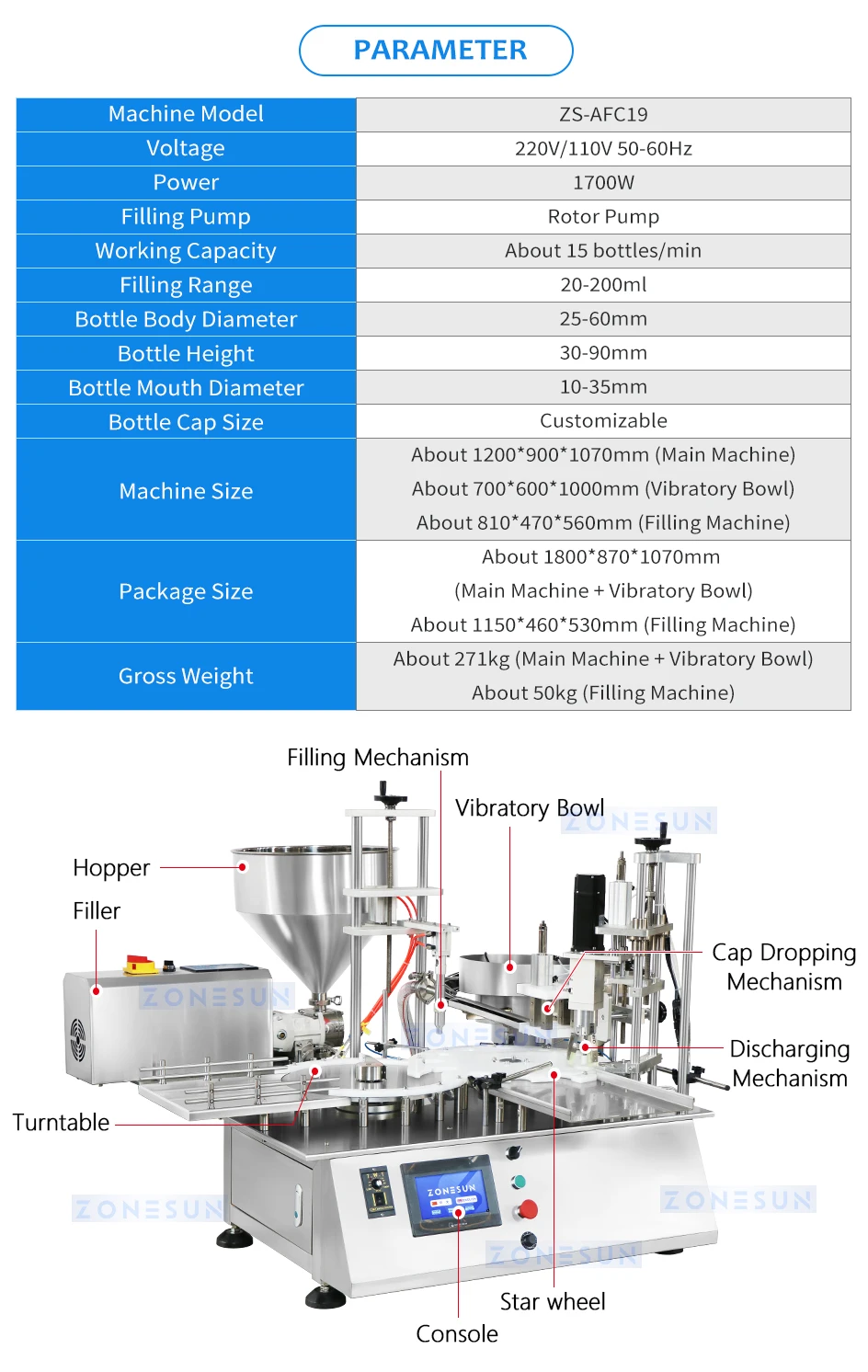

PARAMETER
|
Machine Model |
ZS-AFC19 |
|
Voltage |
220V/110V 50-60Hz |
|
Power |
1700W |
|
Filling Pump |
Rotor Pump |
|
Working Capacity |
About 15 |
|
Filling Range |
20-200ml |
|
Bottle Body Diameter |
25-60mm |
|
Bottle Height |
30-90mm |
|
Bottle Mouth Diameter |
10-35mm |
|
Bottle Cap Size |
Customizable |
|
Machine Size |
About 1200*900*1070mm (Main Machine) About 700*600*1000mm (Vibratory Bowl) About 810*470*560mm (Filling Machine) |
|
Package Size |
About 1800*870*1070mm (Main Machine + Vibratory Bowl) About 1150*460*530mm (Filling Machine) |
|
Gross Weight |
About 271kg (Main Machine + Vibratory Bowl) About 50kg (Filling Machine) |
