DESCRIPTION

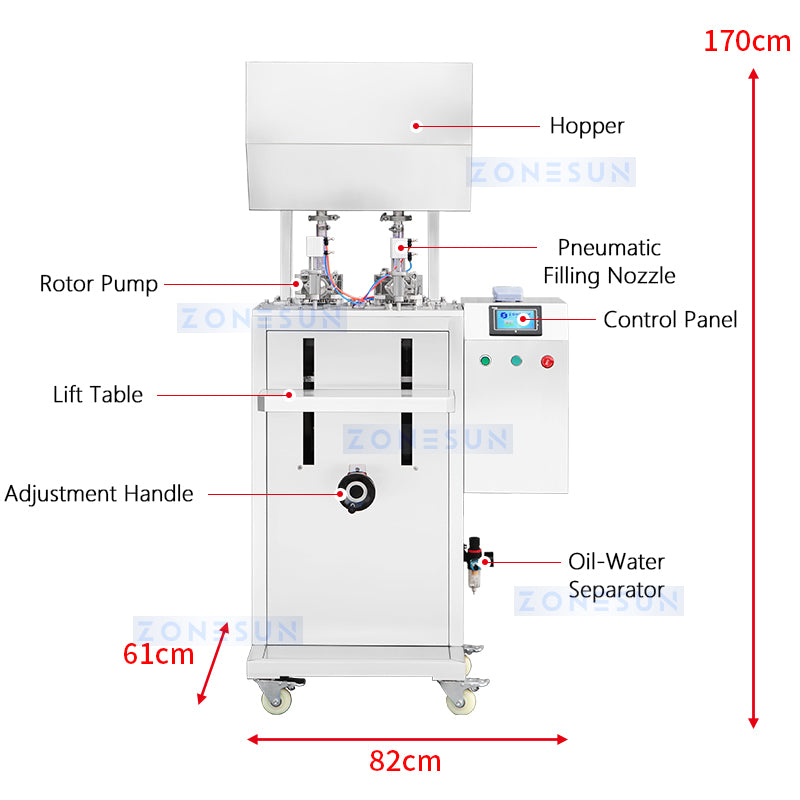

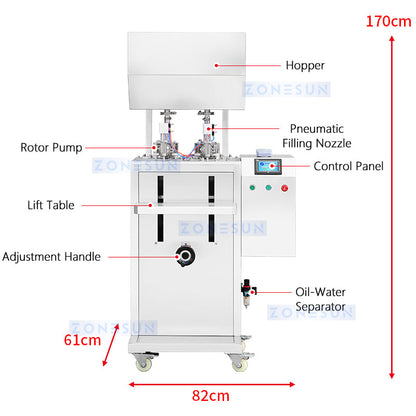

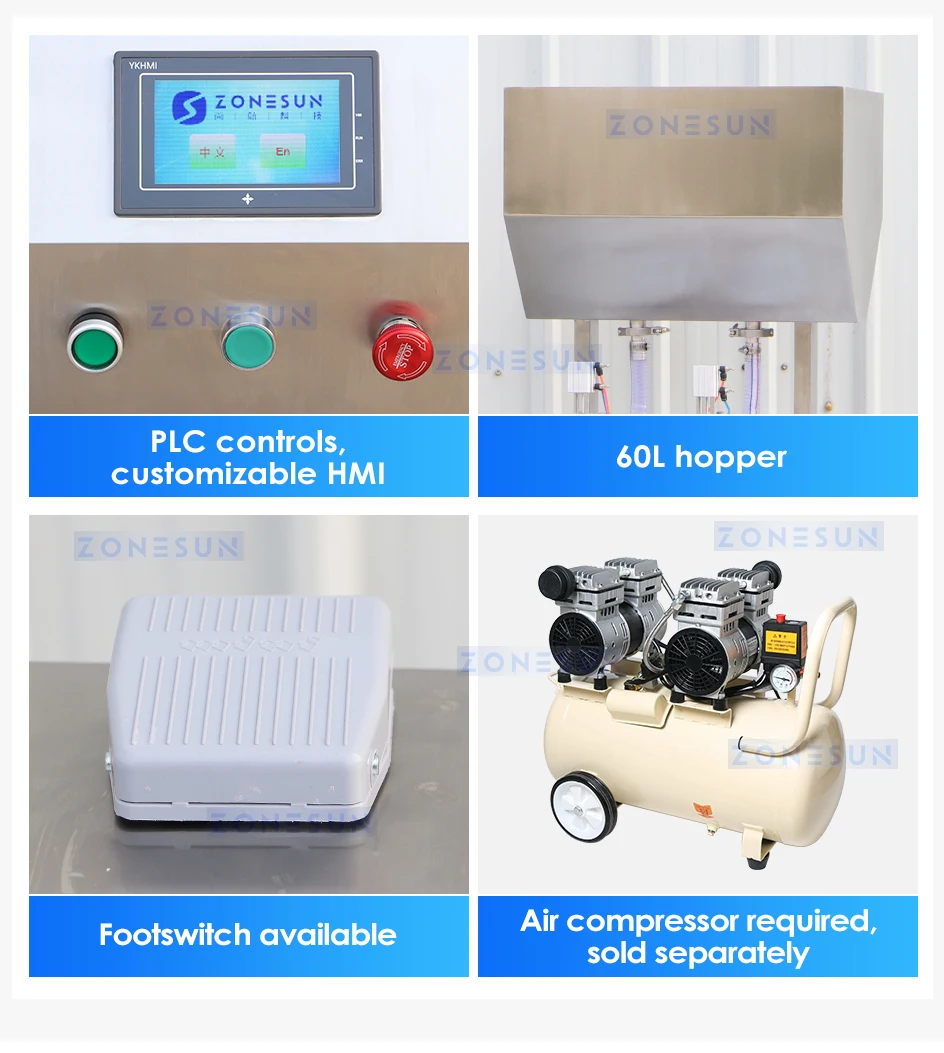

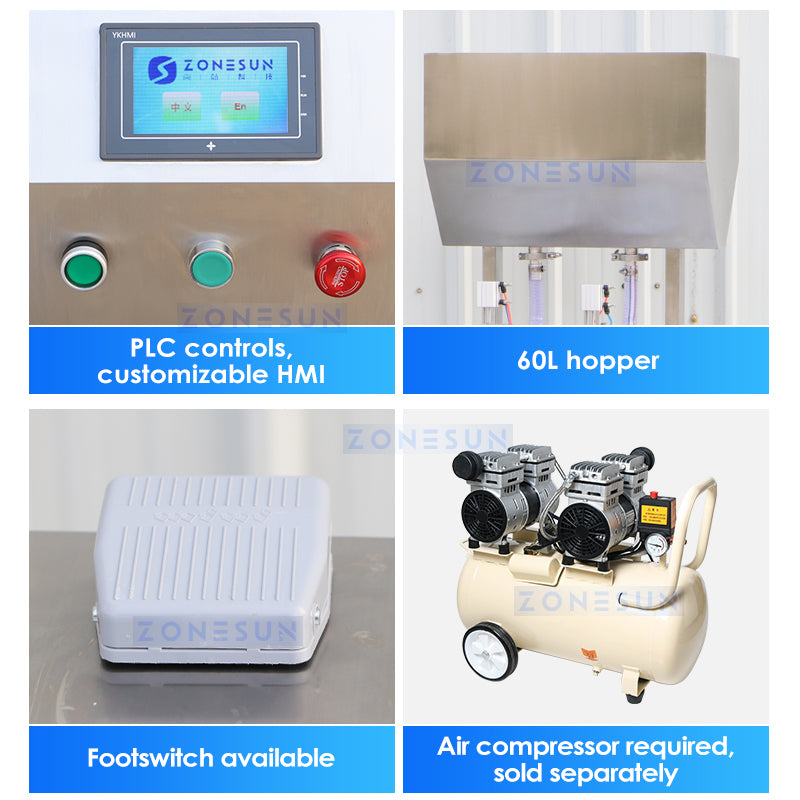

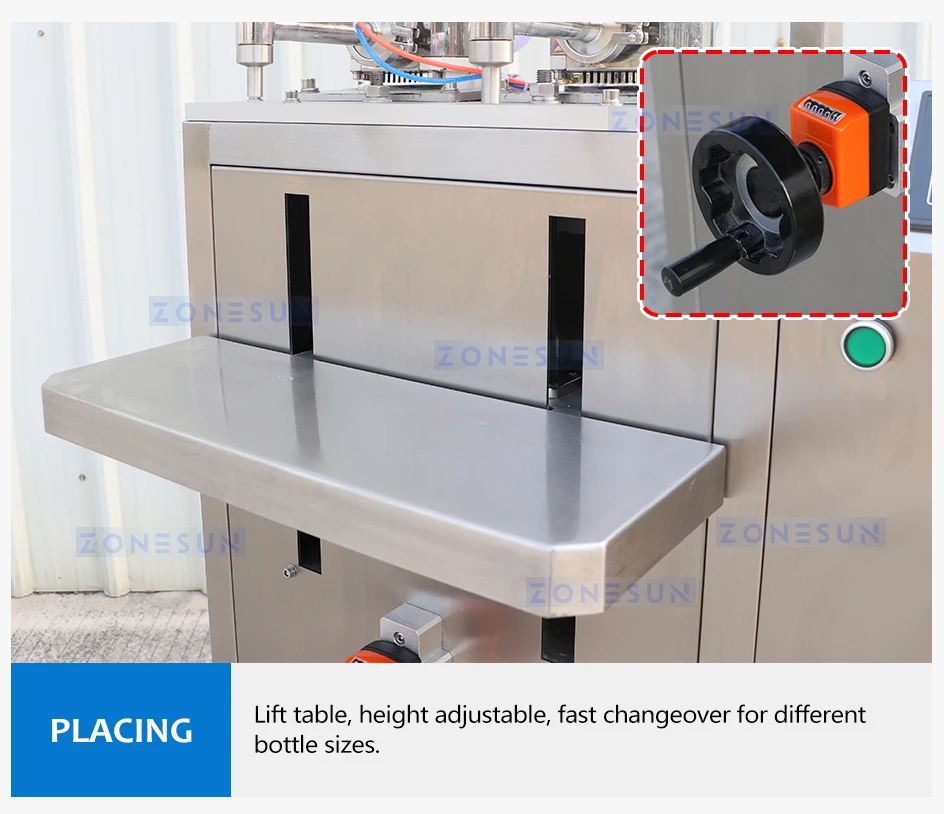

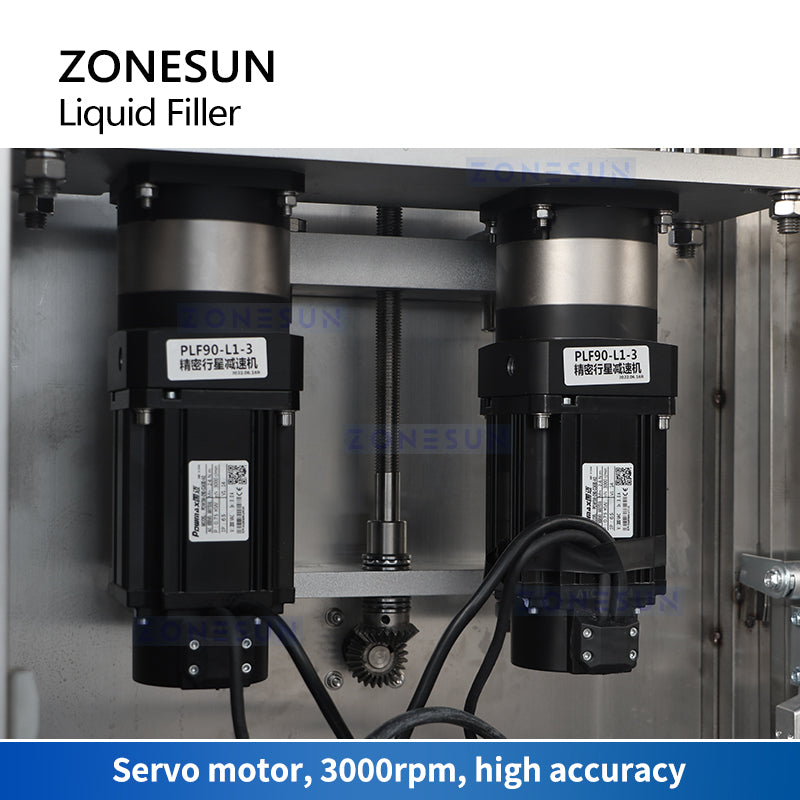

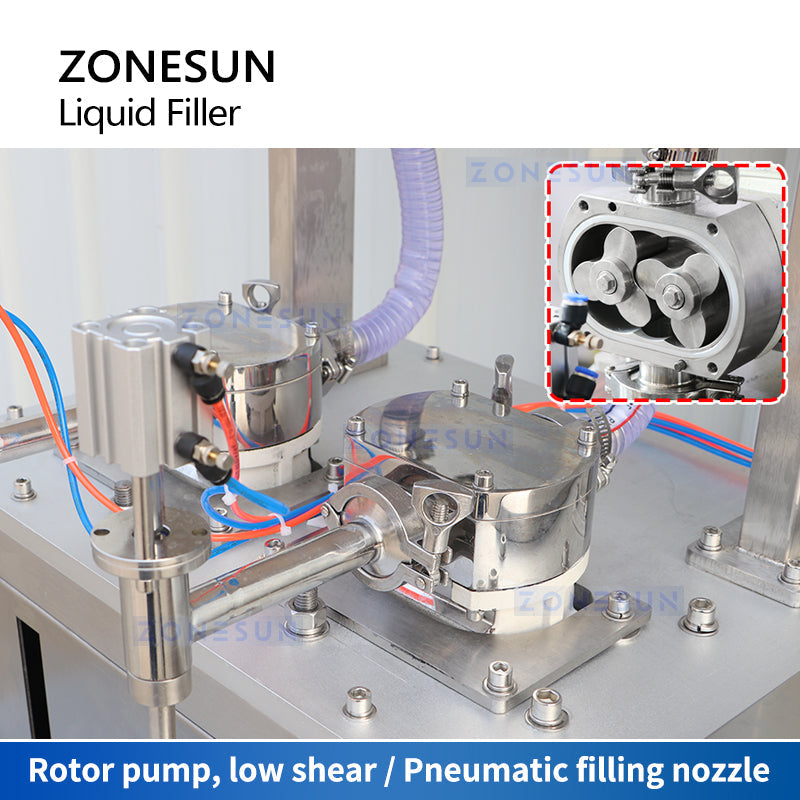

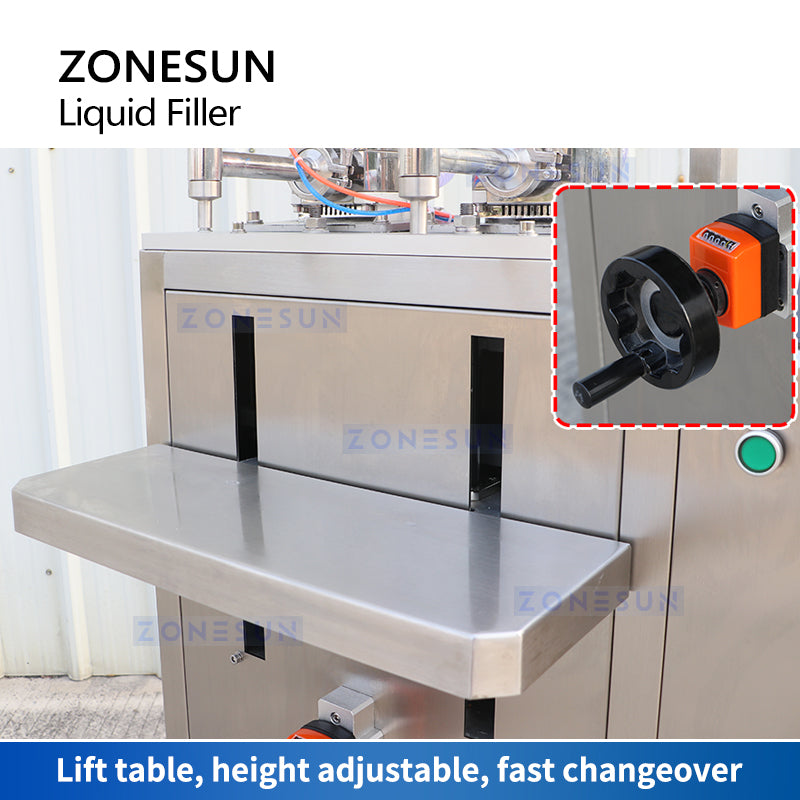

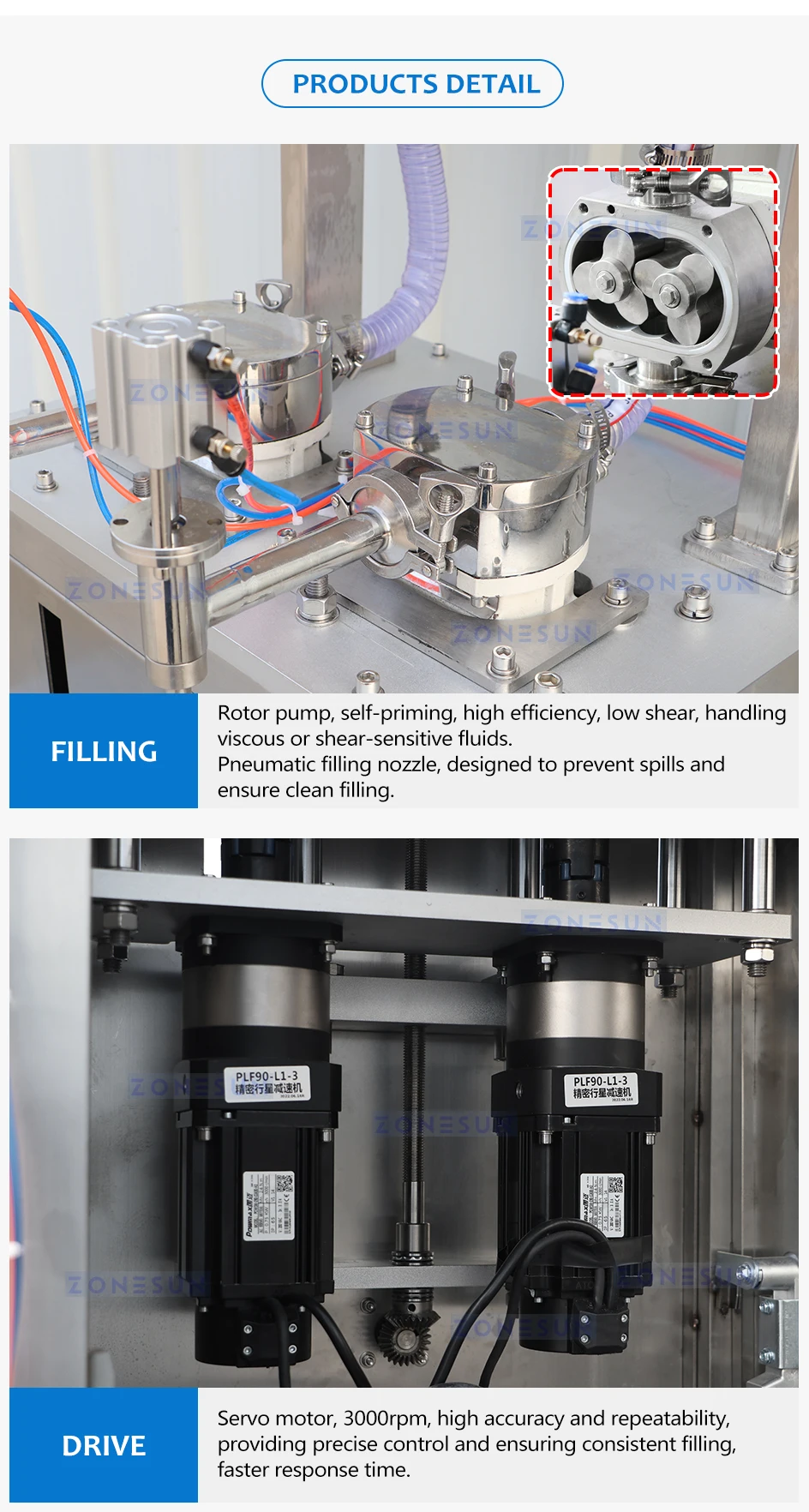

This machine is designed with dual rotary pumps, both driven by a servo motor, providing fast and accurate filling for your liquid products. The machine has a 60L capacity hopper on the top with an air-powered filling nozzle. It features a vertical design with a lift table to place bottles for filling. The PLC control system with a touch screen interface allows for easy operation and precise filling adjustment. The machine also comes with a calibration function to ensure accurate filling every time.
Whatever your packaging needs are, you can rely on ZONESUN.

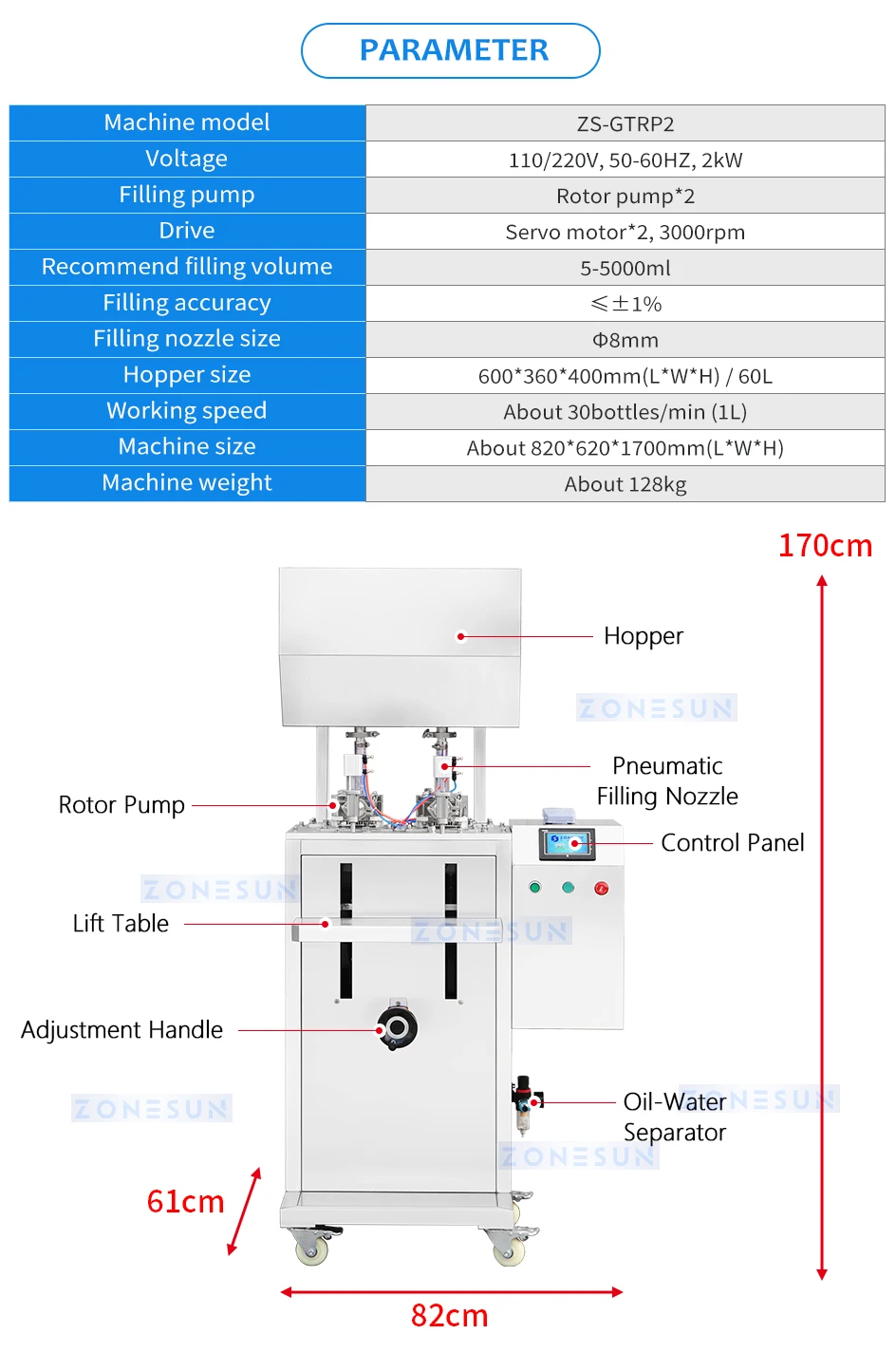

PARAMETER
Machine model |
ZS-GTRP2 |
Voltage |
110/220V, 50-60HZ, 2kW |
Filling pump |
Rotor pump*2 |
Drive |
Servo motor*2, 3000rpm |
Recommend filling volume |
5-5000ml |
Filling accuracy |
≤±1% |
Filling nozzle size |
Φ8mm |
Hopper size |
600*360*400mm(L*W*H) / 60L |
Working speed |
About 30bottles/min (1L) |
Machine size |
About 820*620*1700mm(L*W*H) |
Machine weight |
About 128kg |
