ZONESUN ZS-MPXG1 Small Automatic Magnetic Pump Liquid Filling and Capping Machine
ZONESUN ZS-MPXG1 Small Automatic Magnetic Pump Liquid Filling and Capping Machine
Couldn't load pickup availability
DESCRIPTION

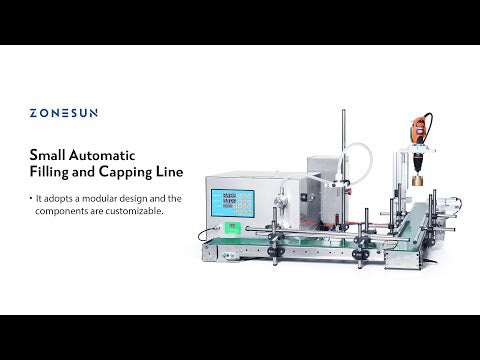

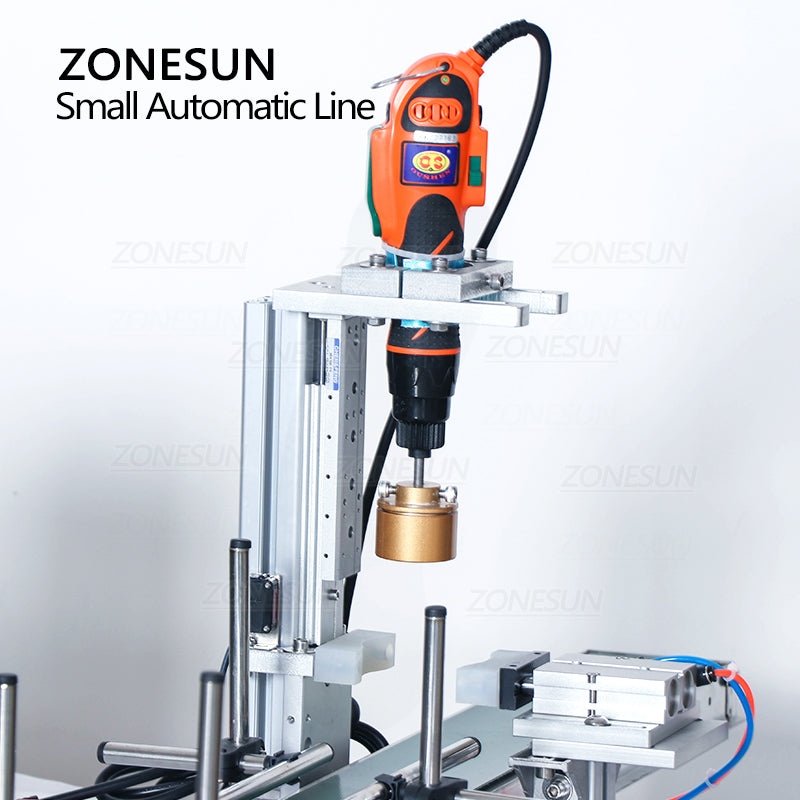

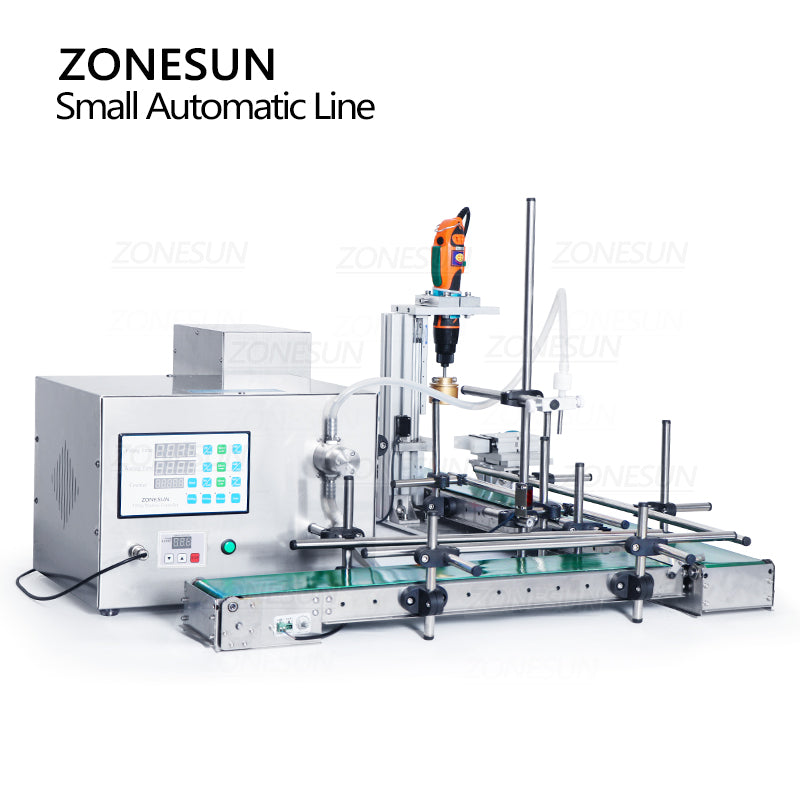

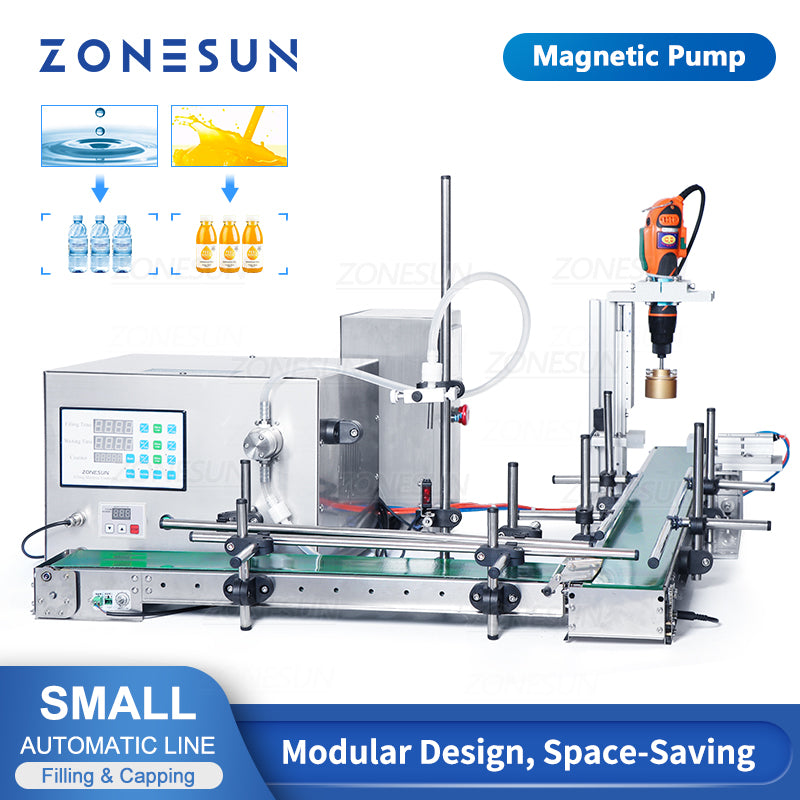

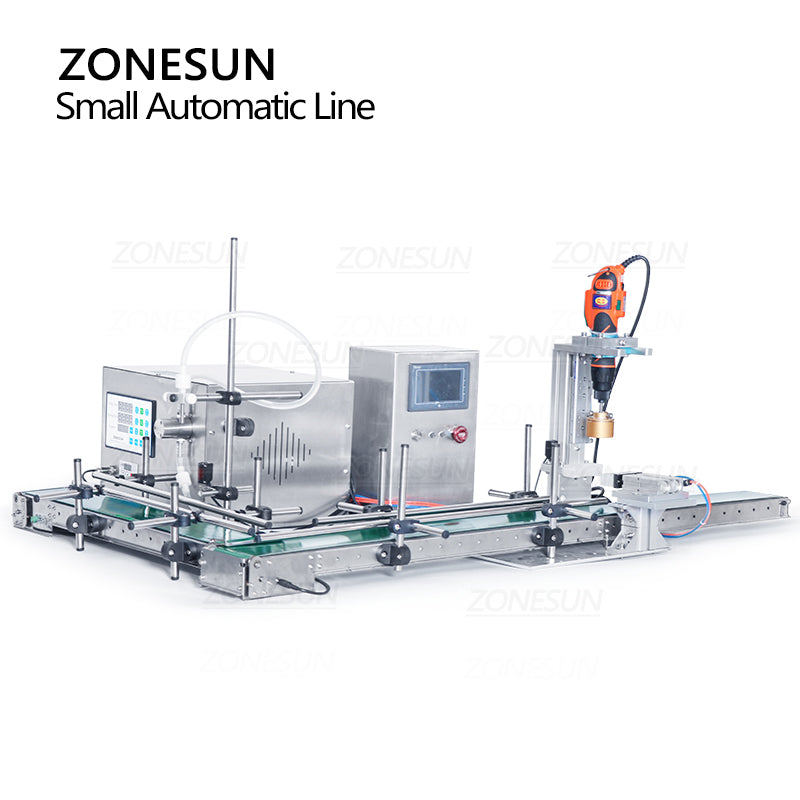

This machine is a fabulous combination of a magnetic pump filling machine and a capping machine. It can automatically transport the bottles with a conveyor. It adopts a modular design, which is space-saving and multifunctional.
APPLICATION
This machine is suitable for filling low viscous liquid and closing screw caps.
PARAMETER
|
Machine Model
|
ZS-MPXG1
|
|
Voltage
|
220V/110V 50-60Hz
|
|
Power
|
50W
|
|
Machine Pump
|
316 Stainless Steel Magnetic Pump
|
|
Recommended Filling Range
|
2-500ml
|
|
Max Flow Rate
|
6L/min(based on water)
|
|
Filling Nozzle Diameter
|
4mm&6mm
|
|
Suitable Bottle Height
|
130-200mm
|
|
Suitable Bottle Diameter
|
40-70mm
|
|
Suitable Bottle Cap Diameter |
20-40mm |
|
Working Speed |
4-15bottles/min (based on bottle size) |
|
Customization |
Available |
|
Size of Conveyor |
About 600mm(L)*100mm(W) & 1200mm(L)*100mm(W) |
|
Package Size |
About 400*400*280mm(Filling Machine) About 650*150*100mm(Conveyor Belt 1) About 670*170*200mm(Conveyor Belt 2) About 250*200*400mm(Control Box) About 250*200*400mm(Capping Machine) |
|
Package Weight |
About About 7.7KG(Filling Machine)+3.7KG(Conveyor Belt 1)+5.5KG(Conveyor Belt 2)+4KG(Control Box)+5KG(Capping Machine) |
