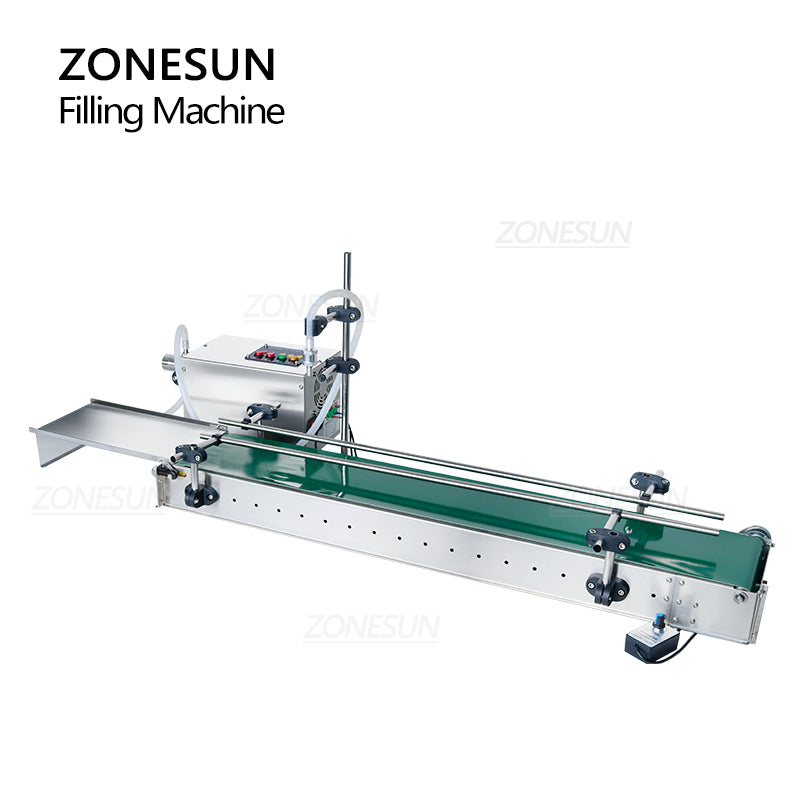

ZONESUN ZS-MPYT600 Automatic Magnetic Pump Liquid Filling Machine With Conveyor
ZONESUN ZS-MPYT600 Automatic Magnetic Pump Liquid Filling Machine With Conveyor
Couldn't load pickup availability
Parameter
|
Machine Model |
ZS-MPYT600 |
|
Voltage |
220V/110V 50-60Hz |
|
Power |
150W |
|
Machine Pump |
316 Stainless Steel Magnetic Pump |
|
Filling Range |
10-1000ml |
|
Filling Speed |
About 20-30bottles/min (depend on liquid and bottle size) |
|
Max Flow Rate |
6L/min(based on water) |
|
Filling Accuracy |
±1% |
|
Filling Nozzle Diameter |
OD 8.4mm |
|
Suitable Liquid Temperature |
Max 100℃ |
|
Conveyor Belt Size |
150mm*870mm(W*L) |
|
Conveyor Belt Capacity |
Max 2kg |
|
Max Suction Distance |
2m |
|
Max Head of Delivery |
3m |
|
Main Machine Size |
About 245*153*160mm |
|
Machine Weight |
About 10kg |
|
Package Size |
About 355*197*230mm(Main Machine) About 965*237*183mm(Conveyor Belt) |
|
Package Weight |
About 12KG |
Application
This machine is suitable for filling low-viscosity liquid, such as essential oil, ink, perfume, etc. It can be widely used in cosmetic, beverage, daily chemical industries.
