ZONESUN ZS-XYZ4A 4 Nozzles Peristaltic Pump Small-volume Liquid Filling Machine
ZONESUN ZS-XYZ4A 4 Nozzles Peristaltic Pump Small-volume Liquid Filling Machine
Regular price
$4,299.00 USD
Regular price
Sale price
$4,299.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
DESCRIPTION

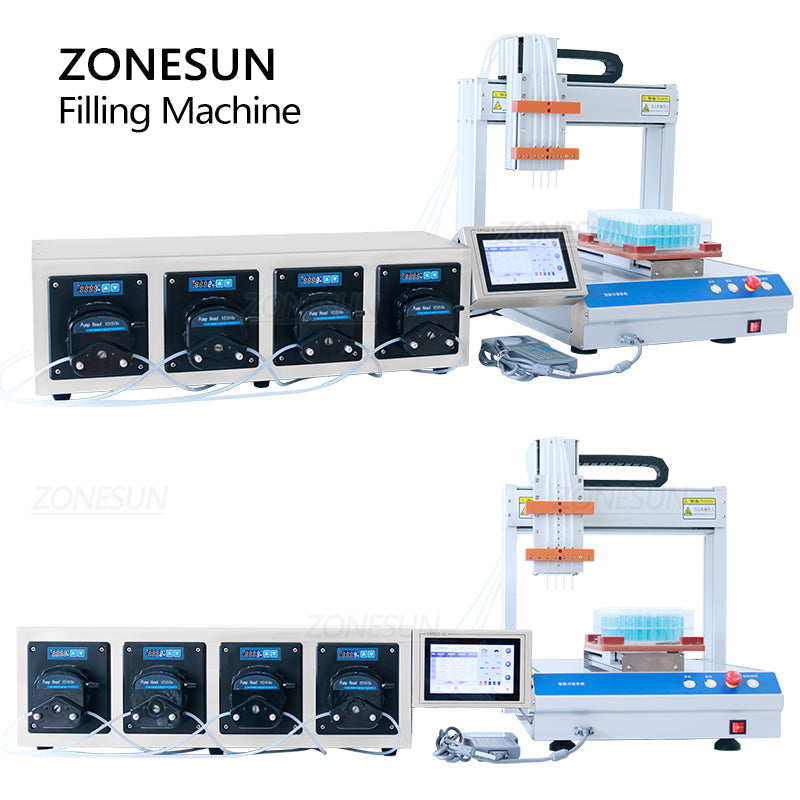

This filling machine is equipped with 4 peristaltic pumps and multiple filling nozzles. The nozzles can move along the X/Y/Z axis. It is suitable for vials or small tubes.
PARAMETER
|
Machine Model |
ZS-XYZ4A |
|
Voltage |
110/220V 50-60HZ |
|
Power |
400W |
|
Filling Range |
0.1-20ml |
|
Filling nozzle quantity |
1/2/3/4 |
|
Filling Speed |
About 60-120 bottles/min (based on filling volume and liquid) |
|
Filling Pump |
Peristaltic Pump |
|
Machine Size |
About 720*250*210mm |
|
Machine Weight |
About 17kg |
PRODUCT DETAILS
CONTROL PANEL
PLC, separately controls the pumps and nozzles.
PERISTALTIC PUMP
Modular design, high filling accuracy, easy to replace the hoses.
FILLING NOZZLE
Small-volume filling, movable along X/Y/Z axis.
JIG
Custom jig for vials or tubes.
