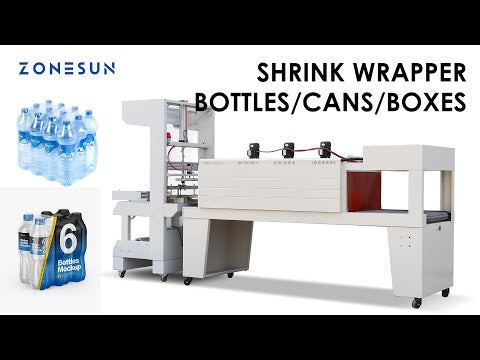

ZONESUN ZS-SPL5 Automatic Sleeve Wrapping Shrinking Machine
ZONESUN ZS-SPL5 Automatic Sleeve Wrapping Shrinking Machine
DESCRIPTION
The sleeve wrapper with a shrink tunnel is designed to be easy to operate and maintain, with a variety of features that make the wrapping and shrinking process more efficient and effective. These may include adjustable speed controls, temperature controls, and other settings that allow for customization and flexibility. The machine is also designed to be durable and long-lasting, with a sturdy construction that can withstand the demands of a production environment. It is versatile and can be used to wrap and shrink a wide variety of products, including bottles, cans, boxes, and more. This makes it a valuable tool for businesses in a range of industries, including food and beverage, cosmetics, and more. Whatever your packaging needs are, you can rely on ZONSUN.
PARAMETER
Sleeve Wrapper |
|
Model |
ZS-QZD5540 |
voltage |
220-240V 50-60Hz |
Power |
1.8 Kw |
Packing speed |
0-6 Bags/min |
Sealing time |
0.5-1.5s |
Max |
420*370*360mm |
Min package size |
100*250*100mm |
Payload |
30Kg |
Film width/thickness |
Max 600mm/0.03-0.25mm |
Suitable for shrink film |
POF/PE/PVC/PP |
Machine size |
About 1020*840*1850mm |
Machine weight |
About 240kg |
Shrink Tunnel |
|
Machine Model |
ZS-BSP6040 |
Voltage |
380V 50-60HZ |
Power |
20KW |
Tunnel Size |
About 1800*600*400mm |
Conveying Speed |
0-15m/min |
Payload |
25kg |
Suitable Film |
PVC/POF/PE/PP |
Machine Size |
About 1800*850*1520mm |
Machine Weight |
About 207kg |
Film |
Thickness(mm) |
Heating time(s) |
Shrink temperature(℃) |
PVC |
0.02-0.06 |
5-10 |
110-130 |
PP |
0.02-0.04 |
6-12 |
130-170 |
PE |
0.03-0.10 |
8-16 |
130-170 |
PRODUCT DETAILS
CONSOLE
Twin safety push-button controls
FEEDING
An easy-load film loading system, no waste film.
WRAPPING
Teflon-coated pneumatically sealing head.
SHRINKING
Tunnel:180cm long,60cm wide, and 40cm high.
3 motors for hot air circulation.
All-day use, heavy-duty construction.
